JUST_POKEY — FPGA-based POKEY Chip Replacement

A modern drop-in replacement for the legendary Atari POKEY chip (C012294). Bring your 8-bit Atari back to life — no need to hunt for increasingly rare and expensive originals.

What is JUST_POKEY?

JUST_POKEY is a fully functional replacement for the POKEY — one of the most important chips in the Atari 8-bit architecture. The original POKEY handled sound generation (4 channels), keyboard scanning, serial I/O (SIO), timers, and interrupt handling. Built on FPGA technology, JUST_POKEY faithfully reproduces the original chip's behaviour in real-world use. Simply remove your failed or missing POKEY and drop JUST_POKEY into the same DIP-40 socket — no soldering, no board modifications.

No fancy stuff… JUST POKEY :-)

Key Features

• PLUG & PLAY — fits directly into the standard DIP-40 socket. Pull the old chip, insert the new one. Done.
• FAITHFUL AUDIO — all 4 sound channels reproduced with accurate tonal characteristics, high-pass filters, and channel-linking modes.
• FPGA HARDWARE — true hardware implementation, not software emulation. Real-time operation with no processing overhead.
• UPDATABLE FIRMWARE — built-in USB port for firmware flashing. Benefit from future compatibility improvements and bug fixes as the project evolves.

Compatibility: JUST_POKEY is designed for all Atari 8-bit computers equipped with a DIP-40 POKEY socket:

✅ Atari 400

✅ Atari 800

✅ Atari 600XL

✅ Atari 800XL

✅ Atari 65XE

✅ Atari 130XE

✅ Atari XEGS

✅ Atari 5200

Technical Specifications

• Product type: POKEY chip replacement (C012294)
• Technology: FPGA (Field-Programmable Gate Array)
• Package: DIP-40 — direct drop-in for the original socket
• Firmware update: USB flasher (built-in)
• Supported functions: Audio (4 channels), keyboard, SIO, timers, IRQ
• Weight: approx. 0.2 kg (packaged)

What's in the Box

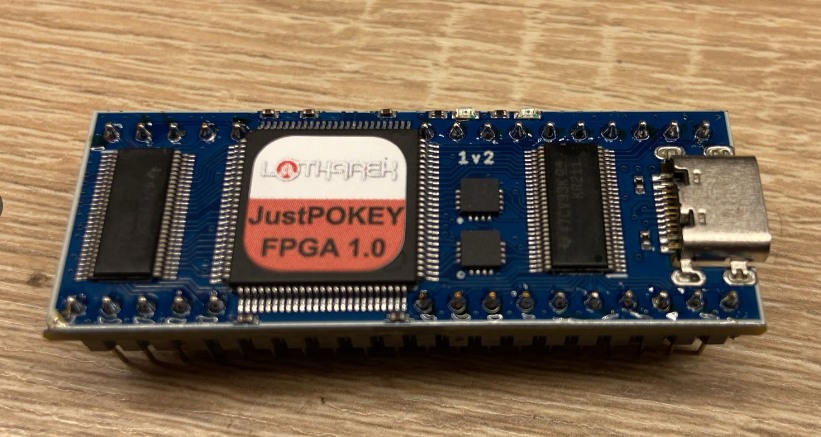

• JUST_POKEY module (DIP-40)
• ESD-safe packaging

Who Is This For?

   If your original POKEY has failed and your Atari won't boot or has no sound — this is your fix. It's also perfect for projects that need an additional POKEY (stereo mods, dual-POKEY setups for games and music) where original chips are scarce and overpriced. And it's great peace of mind as a spare — a future-proof replacement with updatable firmware.

⚠ Compatibility Notice

JUST_POKEY is a modern replacement, not a transistor-level clone of the original. Due to fundamental differences between contemporary CMOS/FPGA technology and the legacy NMOS process used in the original chip, a 100% electrically identical replica is not feasible. The vast majority of software runs correctly — minor differences may occur in programs that rely on undocumented analog quirks or precise electrical characteristics of the original NMOS die.The goal is faithful functional compatibility, not electrical identity. If your original POKEY has failed or is unavailable, JUST_POKEY is designed to get your Atari back up and running.

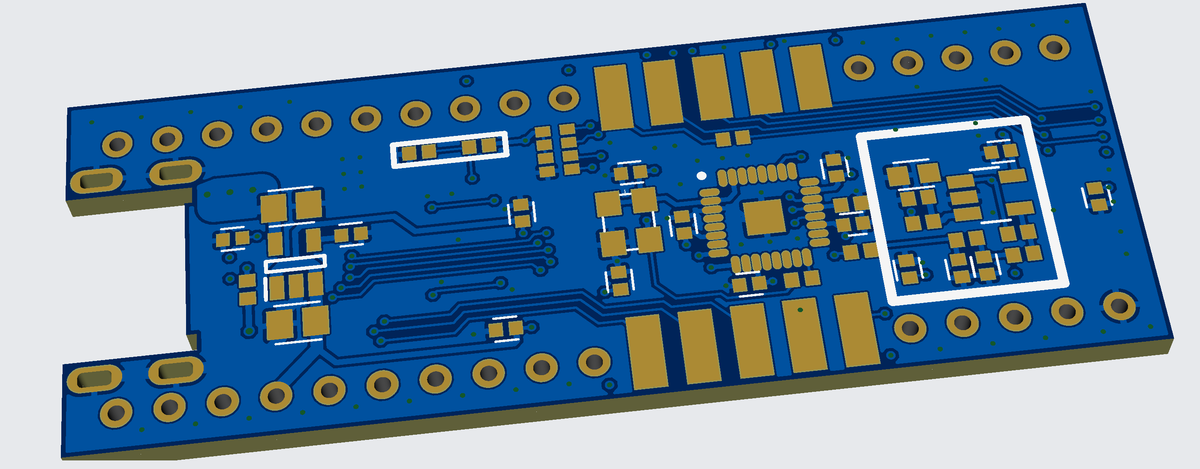

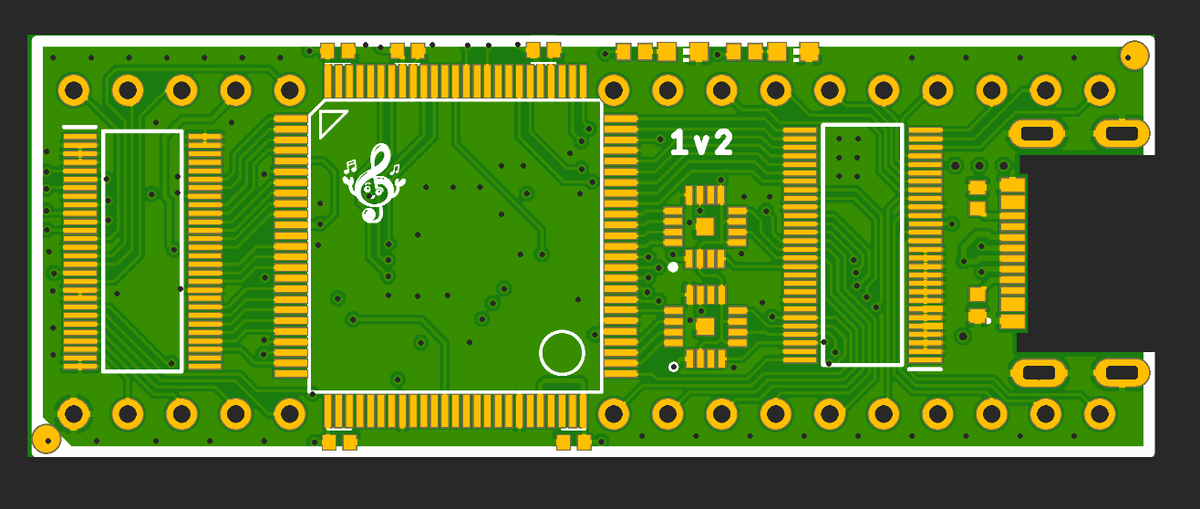

Product gallery
